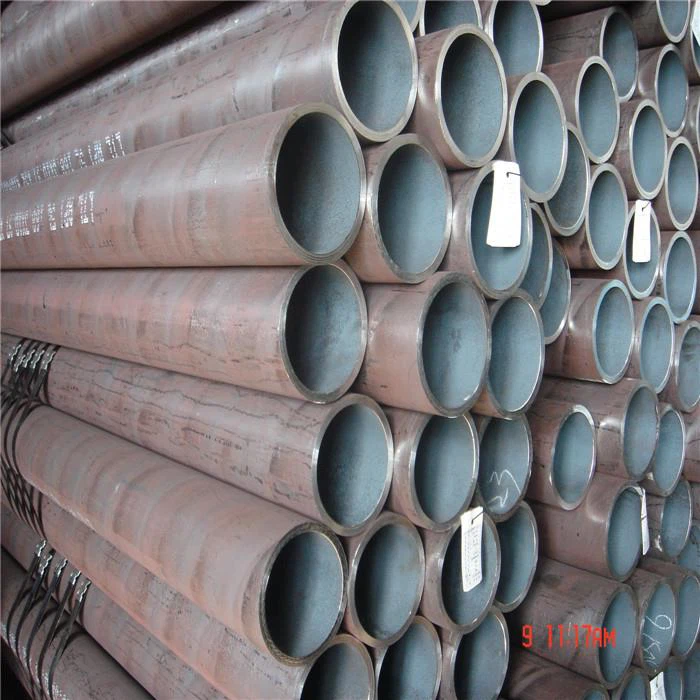

Seamless Pipe API 5L X52

Seamless Pipe API 5L X52

The American Petroleum Institute specification API 5L covers seamless and welded steel line pipe This is steel p

Product Introduction

The American Petroleum Institute specification API 5L covers seamless and welded steel line pipe. This is steel pipe for pipeline transportation systems in the petroleum and natural gas industries. API 5L is suitable for conveying gas, water, and oil. Size range is limited only by manufacturer’s capabilities.Specifications for API 5L adhere to the International Organization for Standardization ISO 3183, which standardizes pipeline transportation systems within the materials, equipment and offshore structures for petroleum, petrochemical, and natural gas industries. The technical committee authoring the standards recognized that there are two basic Product Specifications Levels (PSL) of technical requirements and therefore developed PSL 1 and PSL 2. PSL 1 is a standard quality for line pipe where PSL 2 contains additional chemical, mechanical properties, and testing requirements. Grades covered by this specification are A25 ,A ,B (and the following "X" Grades), X42, X46, X52, X56, X60, X65, X70, X80. The two digit number following the "X" indicates the Minimum Yield Strength (in 000's psi) of pipe produced to this grade.Federal Steel Supply stocks a full rangeof API 5L X52 PSL-1 & PSL-2 line pipe in seamless.

Size

For each reduction of 0.01% below the specified maximum concentration for carbon, an increase of 0.05% above the specified maximum concentration for manganese is permissible, up to a maximum of 1.65% for grades B, but X52; up to a maximum of 1.75% for grades X52, but  X70; and up to a maximum of 2.00% for grade X702.b. The sum of the niobium, vanadium, and titanium concentrations shall be<0.06%.3.c. Unless otherwise agreed, 0.50% maximum for copper, 0.30% maximum for nickel, 0.30% maximum for chromium, and 0.12% maximum for molybdenum.

The steel grade is from X52, X60 to X70. PSL1 and PSL2 are available.

Nominal Pipe Size 1" to 24" O.D.Wall Thickness - Schedule 10 through 160, STD, XS, XXS. Standard.


My company hot sale steel pipe and pipe fittings:



ASTM A106 B seamless pipes,1to 24sch40, sch80),

API 5L GR.B steel pipes, (seamless pipe, LSAW pipe, SSAW pipes, 1 to 110 sch 40, sch80),

Boiler tubes,( 20G. 12Cr1MoVG, ASTM A335 P5, P9, P11),

ASTM A333 GR.6 seamless pipes, ( 1 to 24 sch40, sch80, sch160),

TP304/304L, TP316/TP316L, stainless steel pipes, (1 to 48 sch10, sch20, sch40, sch80),

API 5L X65, X70 PSL2 LSAW welded pipes, (20 to 60 sch40, sch80, sch160),

API 5CT seamless casing, and tubing, (2 3/8 to 20 K55, J55, N80, L80, P110),

Pipe fittings, elbow, reducer, ,tee,cap, flange
