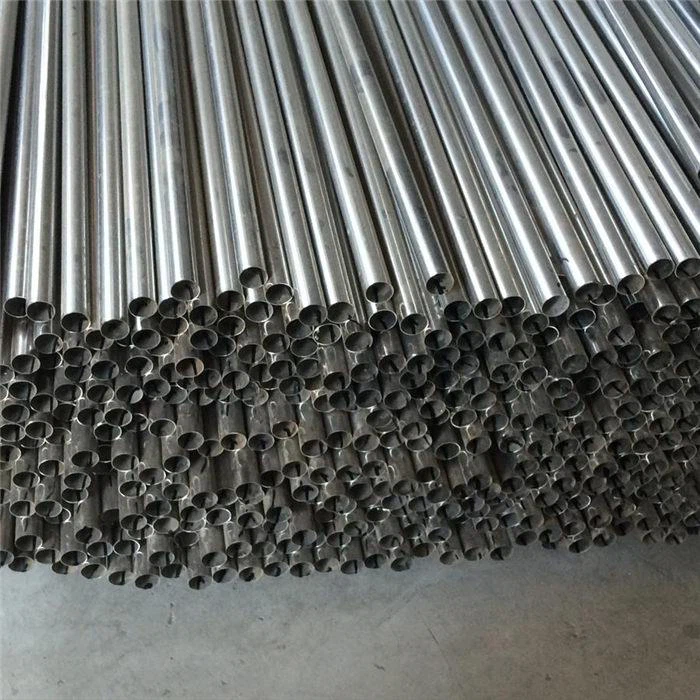

Stainless Steel Tubing For Heat Exchanger

Specification of Stainless Steel tube for heat exchangerOuter Diameter :6 35 mm OD to 114mm ODThickness :0 70 mm

Send Inquiry

Product Introduction

Specification of Stainless Steel tube for heat exchanger

Outer Diameter : 6.35 mm OD to 114mm OD
Thickness : 0.70 mm to 12.70 mm, SCH10S,SCH40S,SCH80S,SCH160S
Technique: Seamless (Cold Drawn/Cold Rolling), Welded
Material: TP304,TP304L,TP304H,TP316, TP316L,TP316Ti, TP309,TP310S,TP314, TP317L, TP321, TP347H,904L, S31803,S32205, S32750 etc.
Length : up to 12 Meters Leg Length & Customed Length
Standard : ASTM A688 / ASTM SA688 / ASTM A249 / ASTM A789/ ASTM A213, JIS 3463 and JIS 3459, DIN 2462, DIN 17458 and DIN 17456, GOST 9941
Finish: Annealed, pickled & polished, BA

Stainless Steel Tubes Size for Heat Exchanger

Outside Diameter
		25	22	20	18	16	14	12	10
			Wall Thickness mm
		0.508	0.71	0.89	1.24	1.65	2.11	2.77	3.40
mm	inch		Weight kg/m
6.35	1/4	0.081	0.109	0.133	0.174	0.212
9.53	3/8	0.126	0.157	0.193	0.257	0.356	0.429
12.7	1/2		0.214	0.263	0.356	0.457	0.612	0.754
15.88	5/8		0.271	0.334	0.455	0.588	0.796	0.995
19.05	3/4		0.327	0.405	0.553	0.729	0.895	1.236
25.4	1		0.44	0.546	0.75	0.981	1.234	1.574	2.05
31.75	1 1/4		0.554	0.688	0.947	1.244	1.574	2.014	2.641
38.1	1 1/2		0.667	0.832	1.144	1.514	1.904	2.454	3.233
44.5	1 3/4				1.342	1.774	2.244	2.894	3.5
50.8	2				1.549	2.034	2.574	3.334	4.03
63.5	2 1/2				1.949	2.554	3.244	4.214	5.13
76.2	3				2.345	3.084	3.914	5.094	6.19
88.9	3 1/2				2.729	3.609	4.584	5.974	7.27
101.6	4					4.134	5.254	6.854	8.35
114.3	4 1/2					4.654	5.924	7.734	9.43
